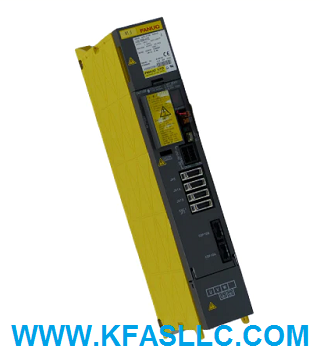

A06B-6096-H102  SVM1-20

Dimensions (H 380 x W 60 x D 172 mm)

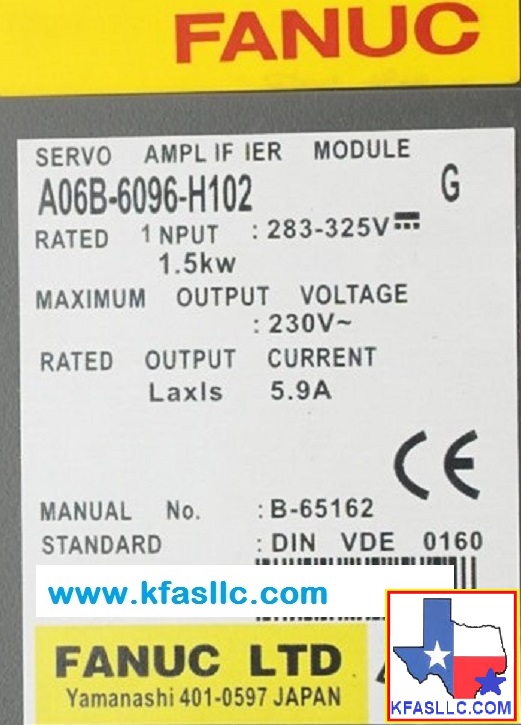

Rated Input: 283-325VDC 1.25 kW

Rated Output Current: L axis    5.9 A

Fanuc A06B-6096-H102 is typically used with Fanuc motor aC3/2000

A06B6096H102 B65165E Manual

Related technical information

A06B-6096-H102 Alarms Meaning and action to be taken

Alarm     Meaning
1              Internal Fan Stopped (FAL)
2              Low control power voltage (LV5V)
5              Low DC link voltage (LVDC)
8              L-axis over-current (HCL)
9              M-axis over-current (HCM)
A              N-axis over-current (HCN)
b             L & M-axis over-current
C             M & N-axis over-current
d             L & N-axis over-current
E              L, M, N -axis over-current
8.             L-axis IPM alarm (IPML)
9.             M-axis IPM alarm (IPMM)
A.             N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B

Related Part NumbersKFASLLC kfasllc.com
A20B-2100-0250 or A20B-2100-0540
