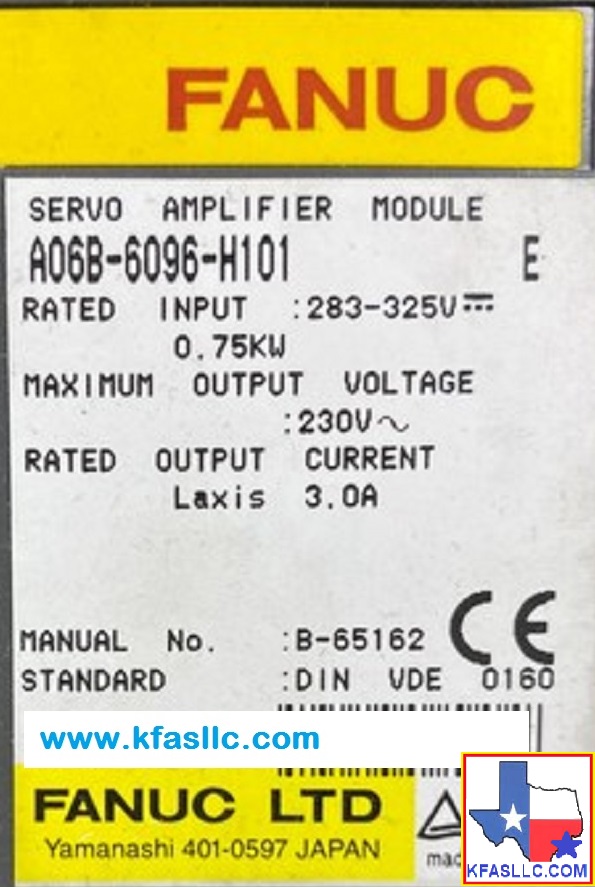

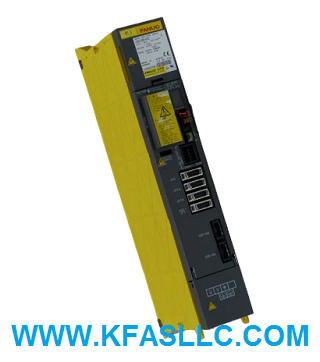

A06B-6096-H101  SVM1-12

Dimensions (H 380 x W 60 x D 172 mm)

Rated Input: 283-325VDC 0.75 kW

Rated Output Current: L axis    3.0 A

Fanuc A06B-6096-H101 is typically used with Fanuc motor a0.5/3000, a1/3000, a2/2000 and a3/3000

A06B6096H101 B65165E Manual

Related technical information

A06B-6096-H101 Alarms Meaning and action to be taken

Alarm     Meaning
1             Internal Fan Stopped (FAL)
2             Low control power voltage (LV5V)
5             Low DC link voltage (LVDC)
8             L-axis over-current (HCL)
9             M-axis over-current (HCM)
A             N-axis over-current (HCN)
b             L & M-axis over-current
C             M & N-axis over-current
d             L & N-axis over-current
E             L, M, N -axis over-current
8.            L-axis IPM alarm (IPML)
9.            M-axis IPM alarm (IPMM)
A.            N-axis IPM alarm (IPMN)
b.            L & M-axis IPM alarm
C.            M & N-axis IPM alarm
d.            L & N-axis IPM alarm
E.             L, M, N-axis IPM alarm
L            FSSB Disconnect COP10A
U            FSSB Disconnect COP10B

Related Part Numbers KFASLLC kfasllc.com
A50L-0001-0273/A
A230-0526-X001/B
A230-0527-X001/A
A230-0527-X002
A20B-2100-0250 or A20B-2100-0540
A16B-2202-0740
A90L-0001-0385
