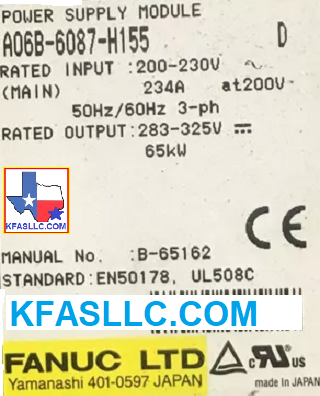

A06B-6087-H155 PSM-55
Rated INPUT: 200-230VAC 234A@200V 50Hz/60Hz 3-phaseRated OUTPUT: 283-325VDC 65kW
Weight 22kg
Dimension: (W x H x D): 300mm x 380mm x 307mm
Related technical information View Picture
A06B-6087-H155 Alpha Series Power Supply Module is equipped with two Internal cooling fan A90L-0001-0422
A06B-6087-H155 Alarms Meaning and action to be taken
AL-01 : Overcurrent in the Main Power Module.
AL-02 : Cooling Fan Stopped.
AL-03 : The temperature of the main circuit heat sink has risen abnormally.
AL-04 : The DC Voltage has dropped.
AL-05 : The main Capacitor was not recharged within the specified time.
AL-06 : The Input Power Supply is Abnormal.
AL-07 : In the main circuit the DC Voltage is abnormally high.
A06B-6087-H155 is typically used with Fanuc 16MC, 16MA, 18TA, 18MC, 21TB,
16TB, 18TB, and 21MB controls.
Typically found on machines such as Youji YV1200,
Toshiba VTL TUE-20
Related Part NumbersKFASLLC kfasllc.com
A20B-1006-0480
A20B-2002-0080
A06B-6087-H155 is also compatible with A06B-6087-H155#EM and A06B-6087-H155#RS
Recommended AC Reactor for A06B-6087-H145 is
A81L-0001-0133
