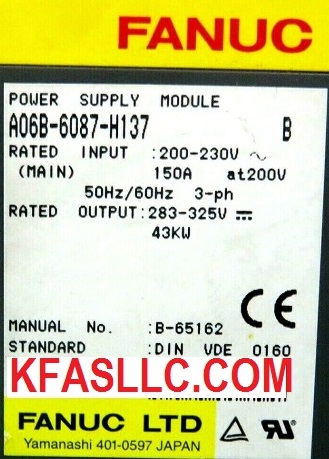

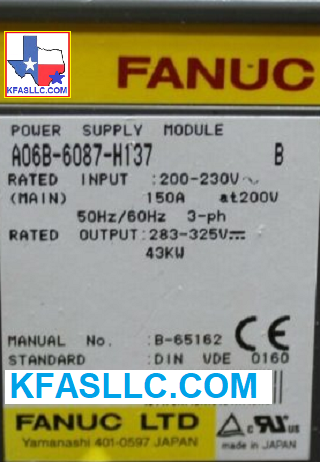

A06B-6087-H137 PSM-37Rated INPUT: 200-230VAC 150A@200V 50Hz/60Hz 3-phase
Rated OUTPUT: 283-325VDC 43kW
Dimension: (W x H x D): 150mm x 380mm x 307mm
A06B6087H137 B65162E Manual
Related technical information View Picture

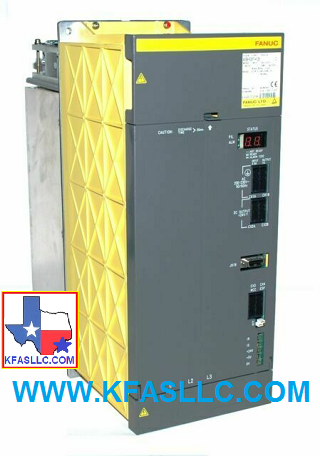

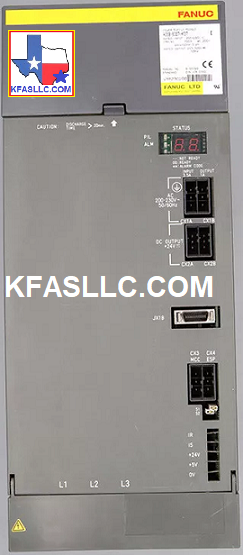

A06B-6087-H137 Alpha Series Power Supply Module is equipped with External cooling fan A90L-0001-0335/B and Internal cooling fan A90L-0001-0422
A06B-6087-H137 Alarms Meaning and action to be taken
AL-01 : Overcurrent in the Main Power Module.
AL-02 : Cooling Fan Stopped.
AL-03 : The temperature of the main circuit heat sink has risen abnormally.
AL-04 : The DC Voltage has dropped.
AL-05 : The main Capacitor was not recharged within the specified time.
AL-06 : The Input Power Supply is Abnormal.
AL-07 : In the main circuit the DC Voltage is abnormally high.
Related Part NumbersKFASLLC kfasllc.com
A06B-6087-H137 is also compatible with A06B-6087-H137#EM and A06B-6087-H137#RS
Recommended AC Reactor for A06B-6087-H137 is
