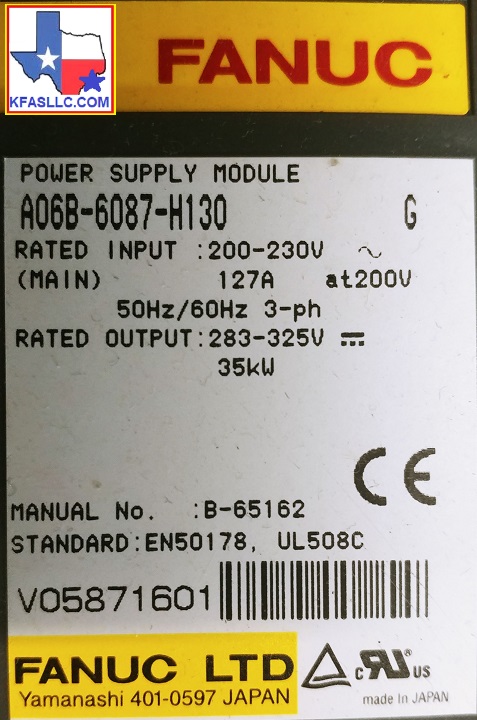

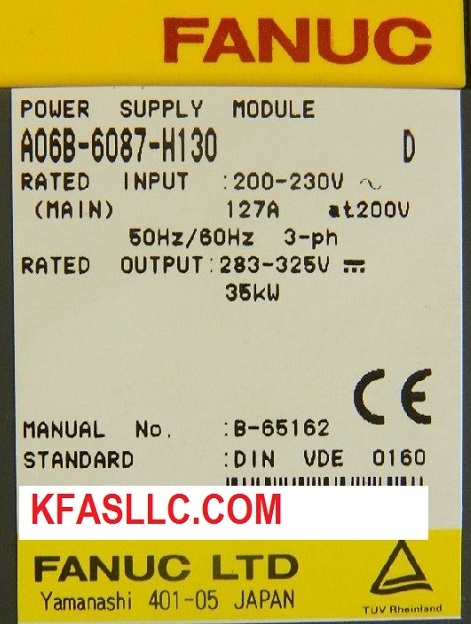

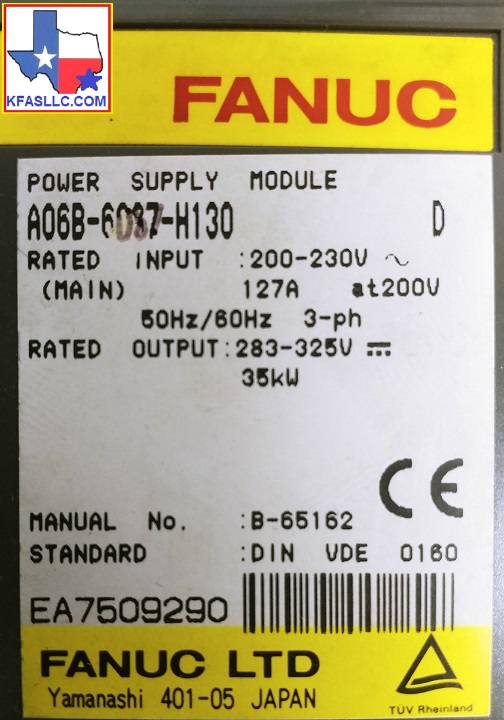

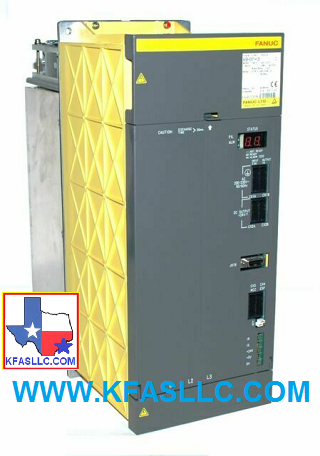

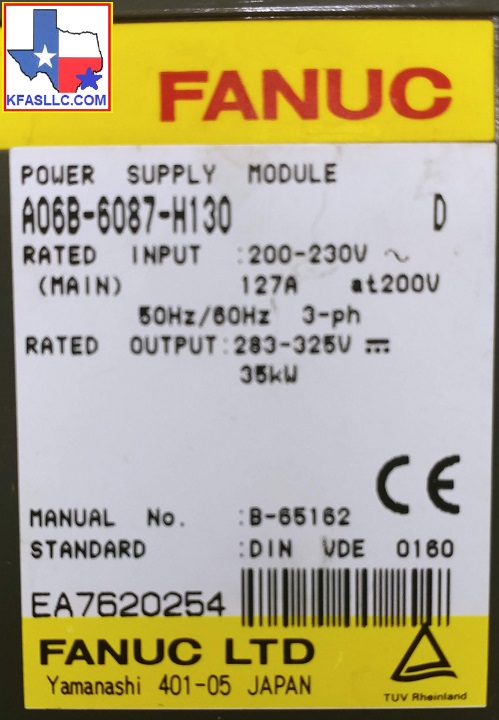

A06B-6087-H130  PSM-30

Rated INPUT: 200-230VAC  127A@200V  50Hz/60Hz  3-phase

Rated OUTPUT: 283-325VDC  35kW

Weight 10.7kg

Dimension: (W x H x D): 150mm x 380mm x 307mm

A06B6087H130 B65162E Manual

Related technical information  View Picture

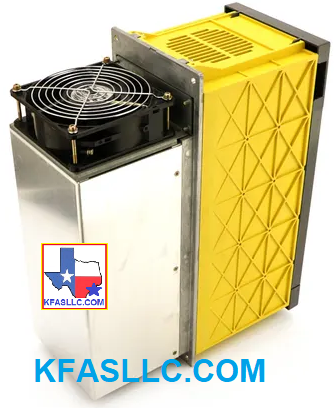

 A06B-6087-H130 Alpha Series Power Supply Module is equipped with External cooling fan A90L-0001-0335/B and Internal cooling fan A90L-0001-0422

A06B-6087-H130 Alarms Meaning and action to be taken
AL-01 : Overcurrent in the Main Power Module.
AL-02 : Cooling Fan Stopped.
AL-03 : The temperature of the main circuit heat sink has risen abnormally.
AL-04 : The DC Voltage has dropped.
AL-05 : The main Capacitor was not recharged within the specified time.
AL-06 : The Input Power Supply is Abnormal.
AL-07 : In the main circuit the DC Voltage is abnormally high.

Related Part NumbersKFASLLC kfasllc.com

A16B-2202-0421

A20B-1006-0472

A06B-6087-H130 is also compatible with A06B-6087-H130#EM and A06B-6087-H130#RS

Recommended AC Reactor for A06B-6087-H130 is A81L-0001-0124
