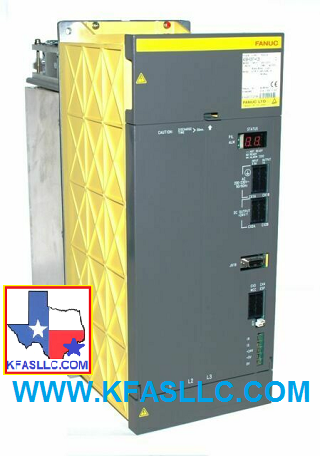

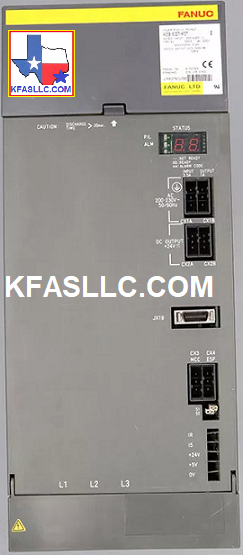

A06B-6087-H115  PSM-15

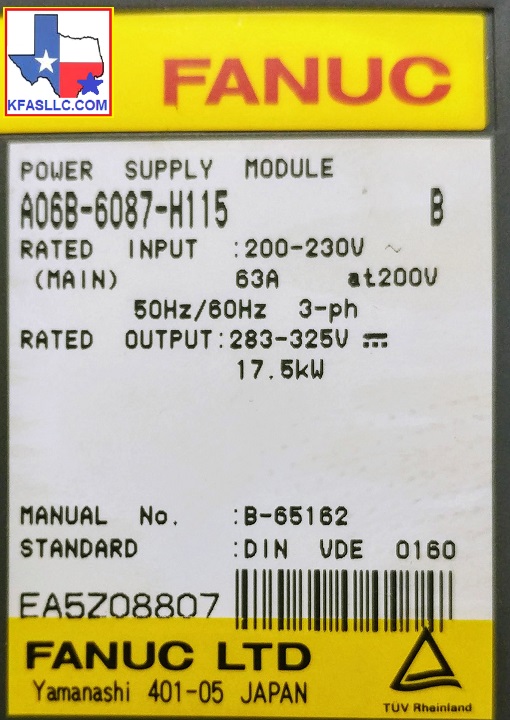

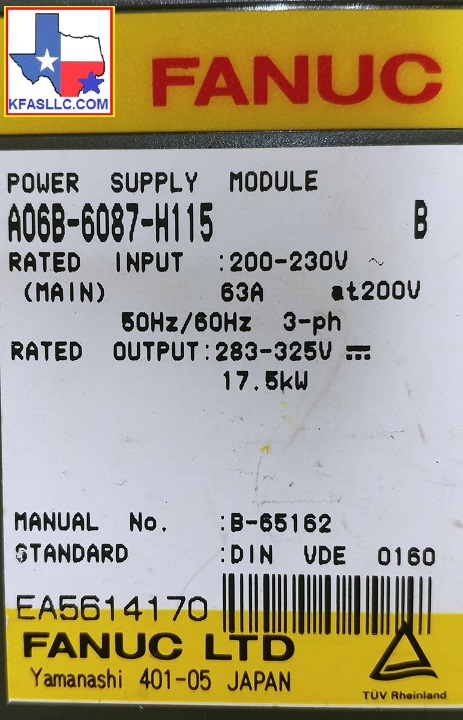

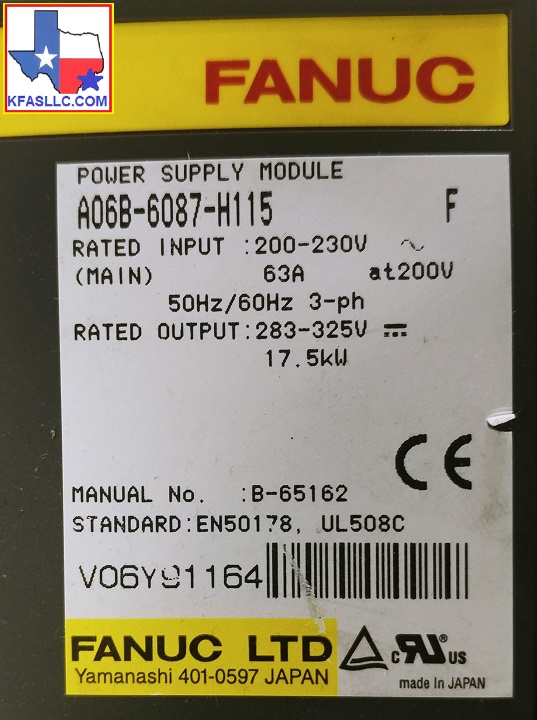

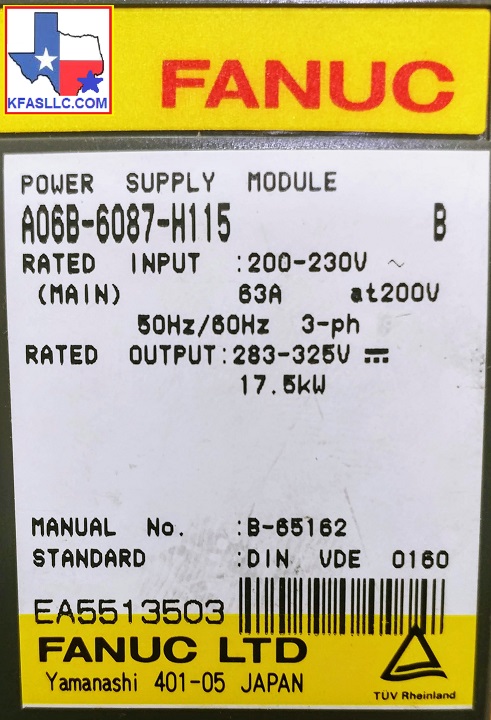

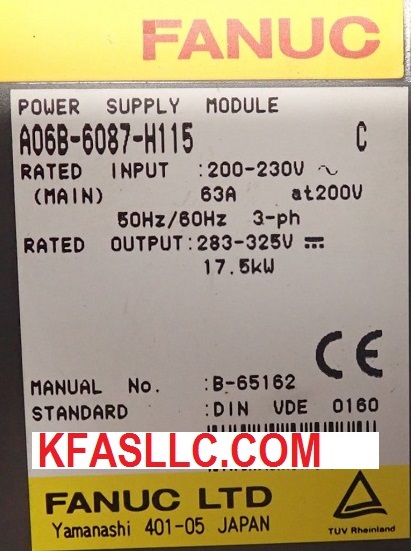

Rated INPUT: 200-230VAC  63A@200V  50Hz/60Hz  3-phase

 Rated OUTPUT: 283-325VDC  17.5kW

Weight 10.7kg

Dimension: (W x H x D): 150mm x 380mm x 307mm

A06B6087H115 B65162E Manual

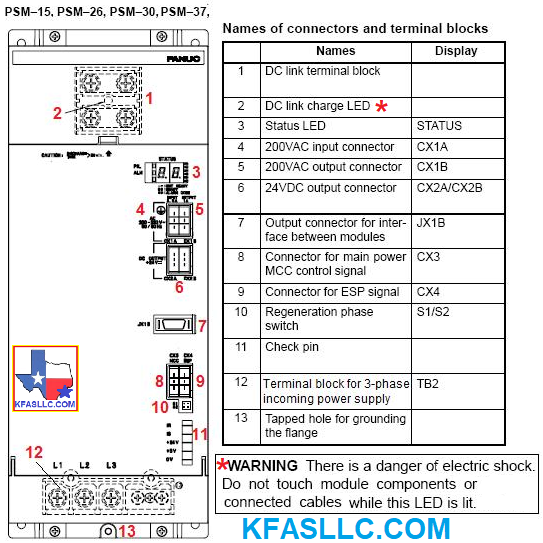

Related technical information  View Picture

 A06B-6087-H115 Alpha Series Power Supply Module is equipped with External cooling fan A90L-0001-0335/B and Internal cooling fan A90L-0001-0422

A06B-6087-H115 Alarms Meaning and action to be taken
AL-01 : Overcurrent in the Main Power Module.
AL-02 : Cooling Fan Stopped.
AL-03 : The temperature of the main circuit heat sink has risen abnormally.
AL-04 : The DC Voltage has dropped.
AL-05 : The main Capacitor was not recharged within the specified time.
AL-06 : The Input Power Supply is Abnormal.
AL-07 : In the main circuit the DC Voltage is abnormally high.

Related Part NumbersKFASLLC kfasllc.com

A16B-2202-0421

A20B-1006-0470

Recommended AC Reactor for A06B-6087-H115 is A81L-0001-0123

A06B-6087-H115 is also compatible with A06B-6087-H115#EM and A06B-6087-H115#RS
