KFAS: Fanuc Parts & Repair



A06B-6077-H111  PSM-11

A06B-6077-H111

SAME DAY SHIPPING: IF ORDERED BY 3PM CENTRAL TIME

$1,250 ($300 Exchange Credit Available)

Select Desire Shipping Option
Your UPS Account# & Method

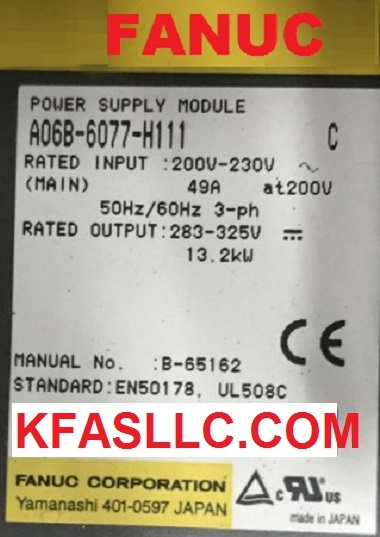

Rated INPUT: 200V-230VAC    49A@200V    50Hz/60Hz   3-phase

Rated OUTPUT: 283-325VDC    13.2kW

A06B6077H111 B65162E Manual

Related technical information  Technical Info

A06B-6077-H111 Alarms Meaning and action to be taken
AL-01 : Overcurrent in the Main Power Module.
AL-02 :
Cooling Fan Stopped.
AL-03 :
The temperature of the main circuit heat sink has risen abnormally.
AL-04 :
The DC Voltage has dropped.
AL-05 :
The main Capacitor was not recharged within the specified time.
AL-06 :
The Input Power Supply is Abnormal.
AL-07 :
In the main circuit the DC Voltage is abnormally high.

a06b6077h111

A06B-6077-H111 is typically used with Fanuc 16iTA, 16iMA, 18iTA, 18iMA, 21iTA, and 21iMA controls. Typically found on machines such as Mori Seiki MV-40E, Hakisui HTL-80, Fortune VT-26

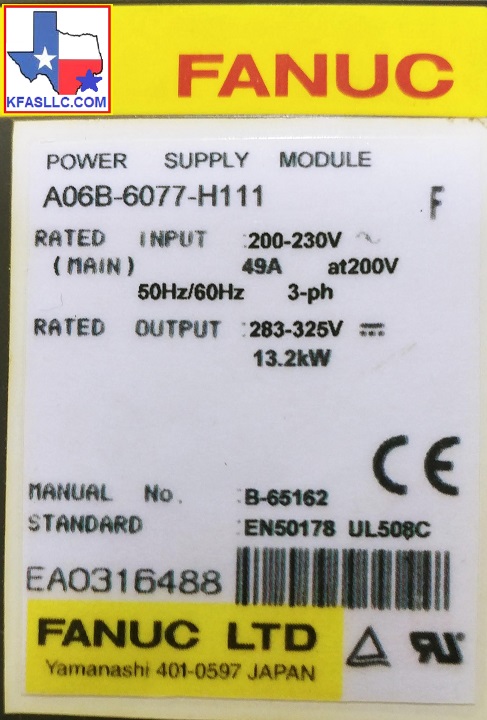

A06B-6077-H111 EA0316488

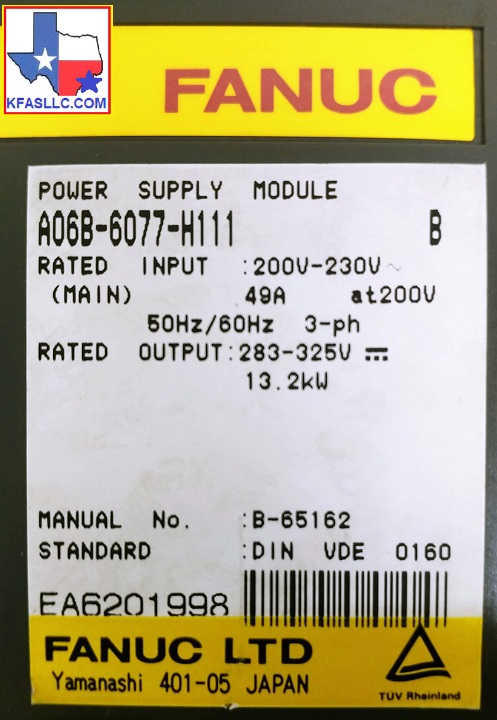

A06B-6077-H111 EA6201998

Related Part NumbersKFASLLC kfasllc.com

A16B-2202-0420

A16B-2202-0661
